MSI B860M GAMING PLUS WIFI6E LGA1851 M-ATX Gaming Motherboard

Intel Core Ultra Series 2 ready | DDR5 memory up to 256GB | PCIe 5.0 and triple M.2 storage | Wi-Fi 6E and 5G LAN connectivity | Frozr cooling for round-the-clock gaming

Quick Specs

• Power through next-gen workloads with LGA1851 support for Intel Core Ultra Series 2 processors
• Multitask without limits thanks to DDR5 memory support up to 256GB across four slots
• Connect faster with Wi-Fi 6E, 5G LAN, and USB 10Gbps for seamless online gaming
• Future-proof your storage with PCIe 5.0 and triple M.2 slots for blistering load times
• Build with confidence using MSI’s EZ DIY features and Frozr cooling for 24/7 stability

A Solid Foundation for Your Next-Gen Build

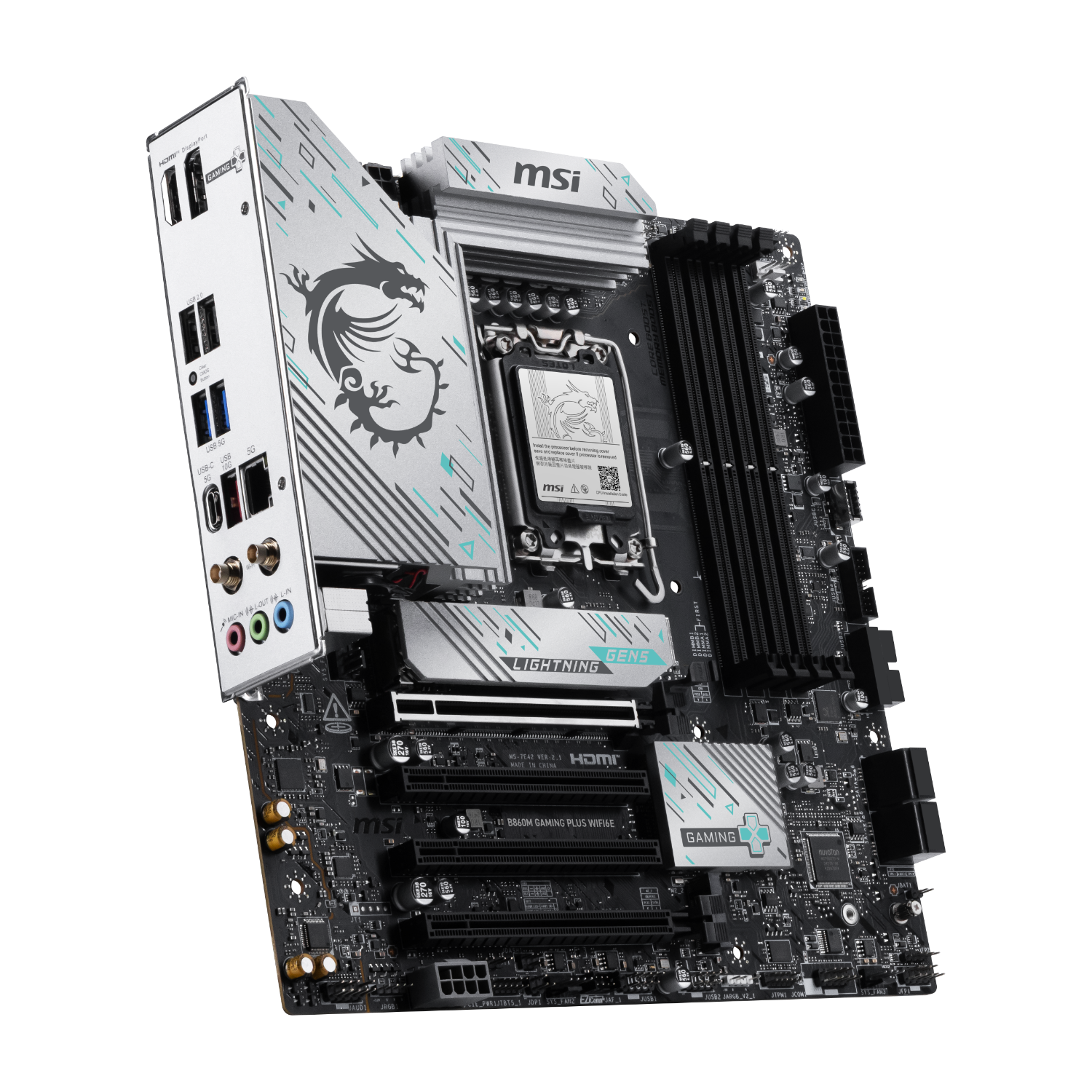

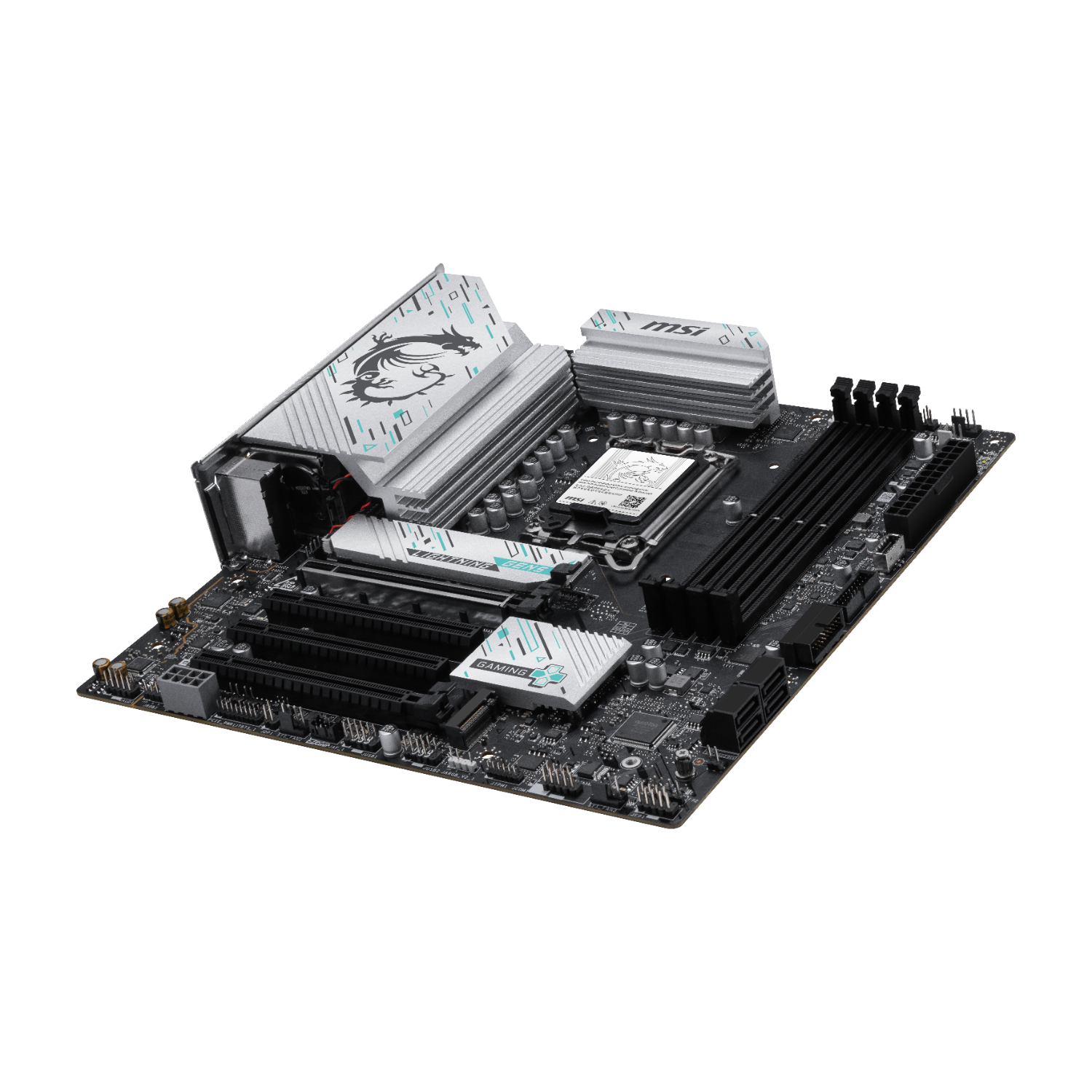

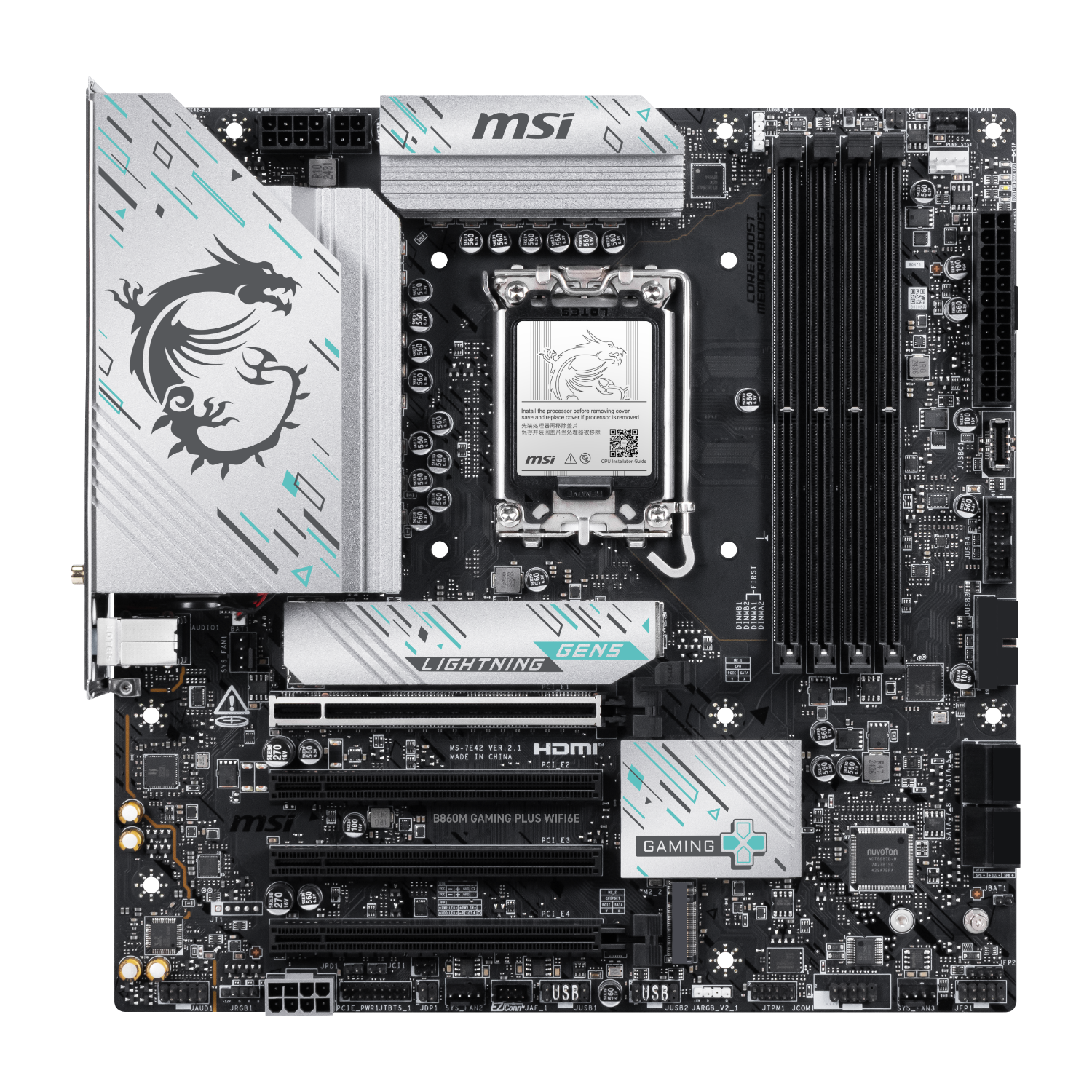

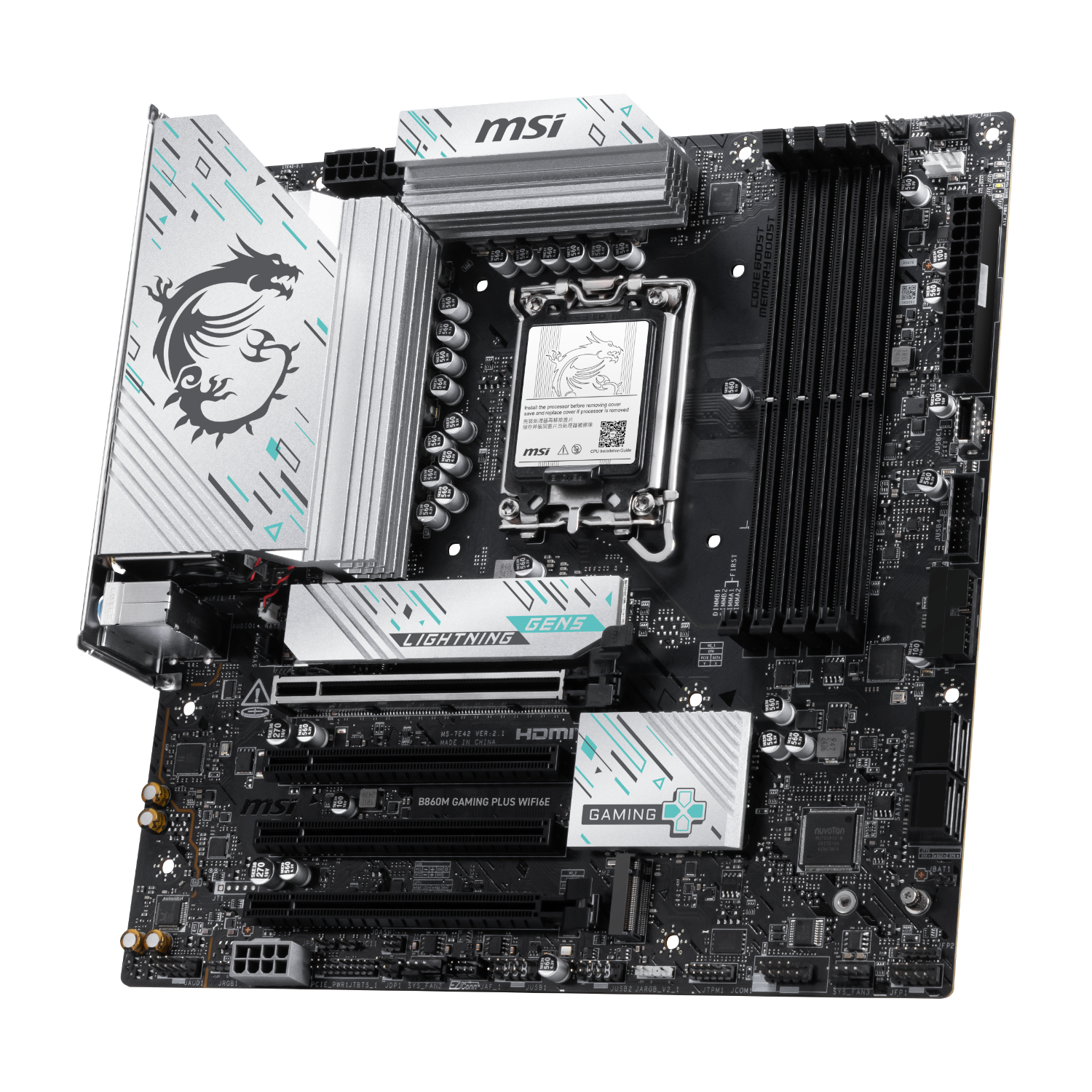

The MSI B860M GAMING PLUS WIFI6E is a Micro-ATX motherboard built around the LGA1851 socket and Intel B860 chipset, designed for gamers and builders who want to pair the latest Intel Core Ultra Series 2 processors with modern connectivity and storage. Whether you’re assembling a new rig from scratch or upgrading an existing system, this board gives you the platform to do it without compromise, backed by MSI’s engineering pedigree and a 36-month warranty.

Power That Doesn’t Quit

Tired of motherboards that throttle the moment your CPU is pushed to its limit? The B860M GAMING PLUS WIFI6E answers with a 12+1+1+1 Duet Rail Power System built on a 6-layer server-grade PCB, combined with Core Boost technology to keep power delivery stable during sustained gaming and heavy workloads. Extended heatsinks and thermal pads rated at 7W/mK work alongside this power design to keep temperatures in check, so your system stays reliable during marathon sessions rather than backing off when you need it most.

Connectivity Built for Speed

Onboard Wi-Fi 6E and 5G LAN give you fast, low-latency networking whether you’re gaming online or transferring large files, while the mix of rear USB ports — including USB 5Gbps Type-A, USB 5Gbps Type-C, and USB 10Gbps Type-A — means your peripherals, drives, and accessories all get the bandwidth they need. It’s connectivity designed to keep pace with a modern gaming setup, without the compromises of an entry-level board.

Storage and Expansion Without the Bottleneck

With a PCIe 5.0 slot for your graphics card and three M.2 slots — one running at Lightning Gen 5 x4 — the B860M GAMING PLUS WIFI6E is ready for the fastest SSDs and GPUs on the market. M.2 Shield Frozr protects your storage from thermal throttling, and MSI’s EZ DIY touches, including the EZ PCIe Clip II and pre-installed I/O shield, make the whole build process noticeably less fiddly.

Features

• Supports Intel Core Ultra Processors (Series 2) on the LGA1851 socket
• 4x DDR5 memory slots supporting up to 256GB, with speeds up to 8800+ MT/s (OC)
• PCIe 5.0 x16 slot plus Lightning Gen 5 x4 M.2 for next-gen GPU and SSD bandwidth
• 3x M.2 slots with M.2 Shield Frozr thermal protection for high-speed storage
• Onboard Wi-Fi 6E and 5G LAN for fast, stable, low-latency networking
• 12+1+1+1 Duet Rail Power System with Core Boost for sustained performance under load
• EZ DIY design with EZ PCIe Clip II, pre-installed I/O shield, and EZ Debug LED for easier builds
• Studio-grade 7.1-channel HD audio via Realtek ALC897 codec

Specifications

• Socket: LGA1851
• Chipset: INTEL B860
• Form Factor: Micro-ATX
• Memory Type: DDR5
• Memory Slots: 4
• Max Memory: 256 GB
• M.2 Slots: 3
• PCIe Version: PCIe 5.0
• Onboard Wi-Fi: Wi-Fi 6E
• LAN Speed: 5G LAN

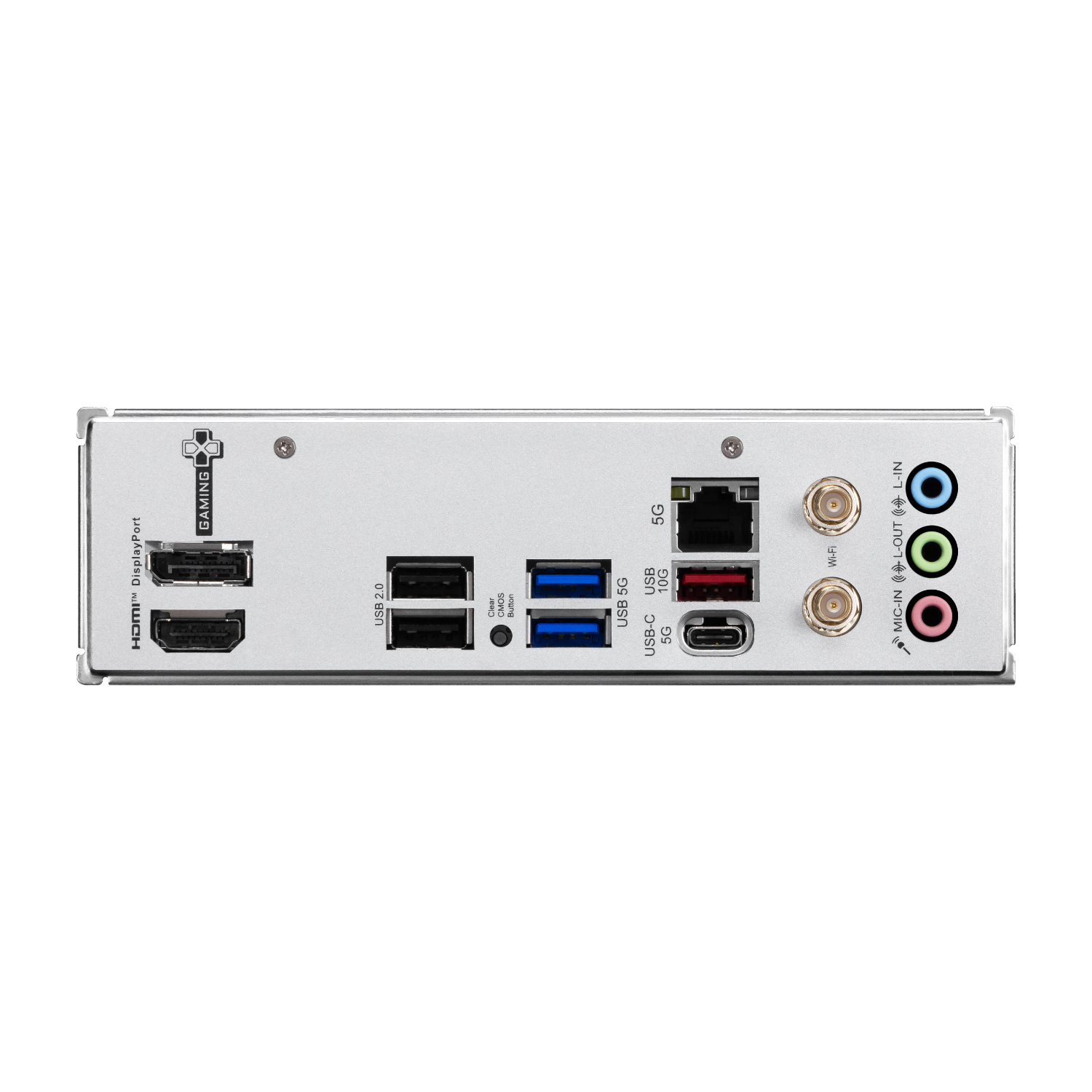

• Rear USB Ports:
  • 2x USB 2.0
  • 2x USB 5Gbps Type A
  • 1x USB 5Gbps Type C
  • 1x USB 10Gbps Type A
• Colour: Black/Silver
• Warranty: 36 months
• Product Dimensions: 24.3 x 24.3 cm

What’s in the Box

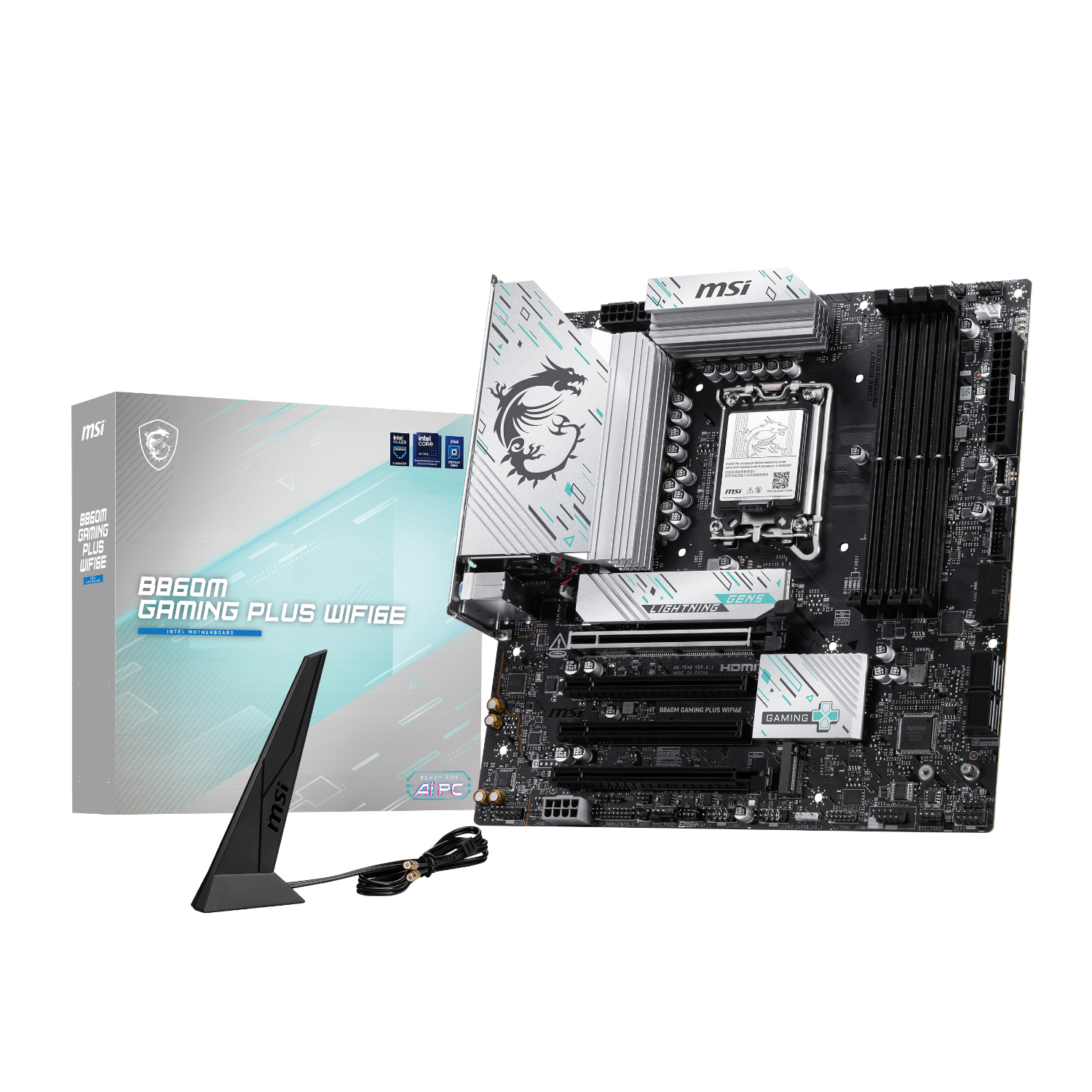

• 1 x MSI B860M GAMING PLUS WIFI6E LGA1851 M-ATX Gaming Motherboard
• 1 x EZ Wi-Fi Antenna
• 1x SATA Cable
• 3 x M.2 Screw and Standoff Sets
• 1 x 1 to 2 EZ Conn-cable (V1)
• 1 x Quick Installation Guide

Why MSI

MSI has built its reputation on giving gamers and builders the performance and reliability they demand, and the B860M GAMING PLUS WIFI6E carries that commitment into the Intel B860 platform. With durable engineering, thoughtful EZ DIY touches, and a 36-month warranty, it’s a motherboard South African PC builders can trust as the foundation of a serious gaming rig.
