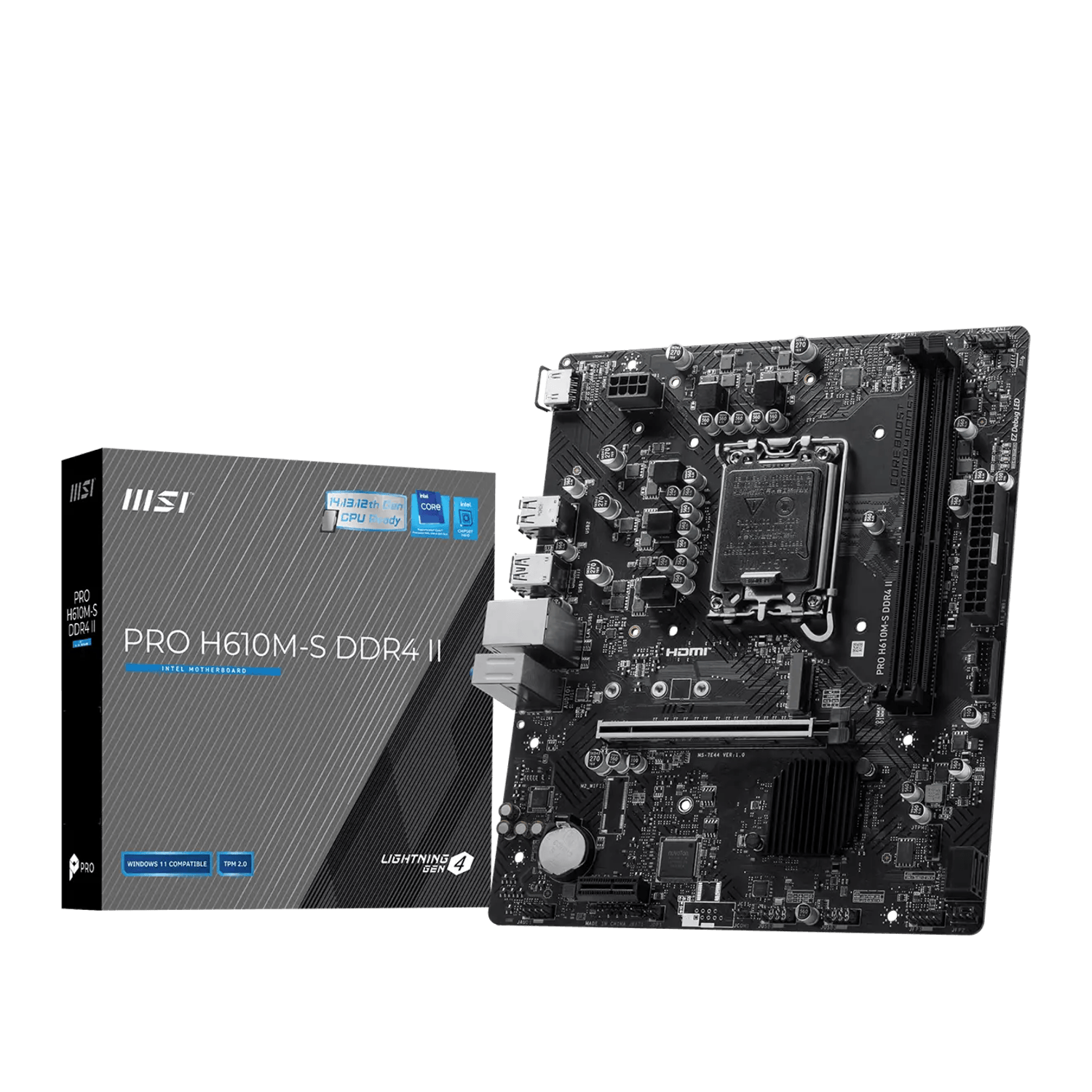

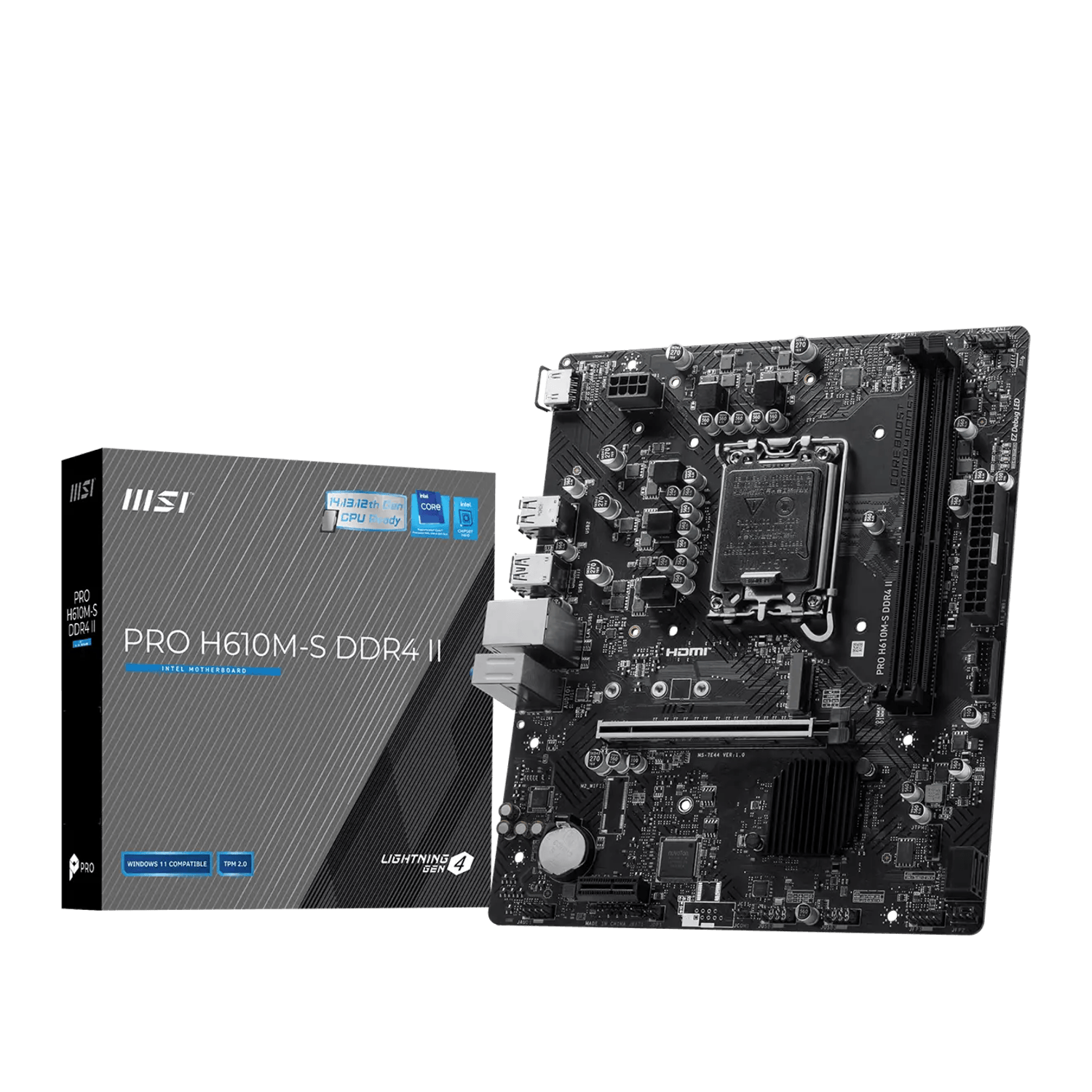

MSI PRO H610M-S DDR4 II LGA1700 M-ATX Motherboard

Intel 12th/13th/14th Gen ready | PCIe 4.0 x16 slot | Up to 64 GB DDR4 | Micro-ATX form factor | 3-year warranty

The MSI PRO H610M-S DDR4 II is a Micro-ATX motherboard built for professionals and system builders who need a reliable, no-fuss foundation for an Intel-based productivity PC. Designed around the Intel H610 chipset and LGA1700 socket, it supports Intel Core 12th, 13th, and 14th Gen processors — as well as Pentium Gold and Celeron — giving you flexibility whether you’re building new or upgrading. Two DDR4 memory slots accommodate up to 64 GB of dual-channel RAM, while a PCIe 4.0 x16 slot delivers the bandwidth needed for a capable discrete GPU. An M.2 slot (PCIe 3.0 x4) keeps fast NVMe storage tidy and off the SATA lanes, alongside four SATA 6 Gb/s ports for additional drives. Rear connectivity includes HDMI 1.4 (up to 4K 30 Hz on processors with integrated graphics), a VGA output, Gigabit LAN, and a mix of USB 2.0 and USB 3.2 Gen 1 5 Gbps Type-A ports. MSI’s Core Boost power design, EZ Debug LEDs for straightforward troubleshooting, and the MSI Center software suite round out a board engineered to keep your workday running smoothly.

Features

• Supports Intel Core 14th, 13th, and 12th Gen processors on the LGA1700 socket, plus Intel Pentium Gold and Celeron
• PCIe 4.0 x16 slot (from CPU) for high-bandwidth discrete graphics cards, with Steel Armor reinforcement
• Two DDR4 memory slots supporting up to 64 GB in dual-channel configuration
• 1x M.2 slot (PCIe 3.0 x4) for NVMe SSDs in 2242, 2260, and 2280 form factors
• 4x SATA 6 Gb/s ports for additional storage devices
• Rear display outputs: HDMI 1.4 (4K 30 Hz) and VGA — available on CPUs with integrated graphics
• Realtek ALC897 7.1-channel High Definition Audio codec
• Realtek RTL8111H Gigabit LAN controller with MSI AI LAN Manager for traffic prioritisation
• 4x EZ Debug LEDs for quick fault diagnosis during POST
• MSI Core Boost technology for stable, optimised power delivery to the CPU
• TPM 2.0 header included; Windows 11 64-bit compatible

Specifications

• Socket: LGA1700
• Chipset: Intel H610
• Form Factor: Micro-ATX
• Memory Type: DDR4
• Memory Slots: 2
• Max Memory: 64GB
• M.2 Slots: 1
• PCIe Version: PCIe 4.0 x16 (from CPU), PCIe 3.0 x1 (from Chipset)
• LAN Speed: 1 Gbps
• Rear USB Ports: 4x USB 2.0 Type-A,2x USB 3.2 Gen 1 5Gbps Type-A
• Colour: Black/Silver
• Product Dimensions: 23.6 x 20 cm

What’s in the Box

• MSI PRO H610M-S DDR4 II LGA1700 M-ATX Motherboard x1
• SATA Cable x1
• I/O Shield x1
• M.2 Screw/Standoff Set x1
• Quick Start Guide x1
