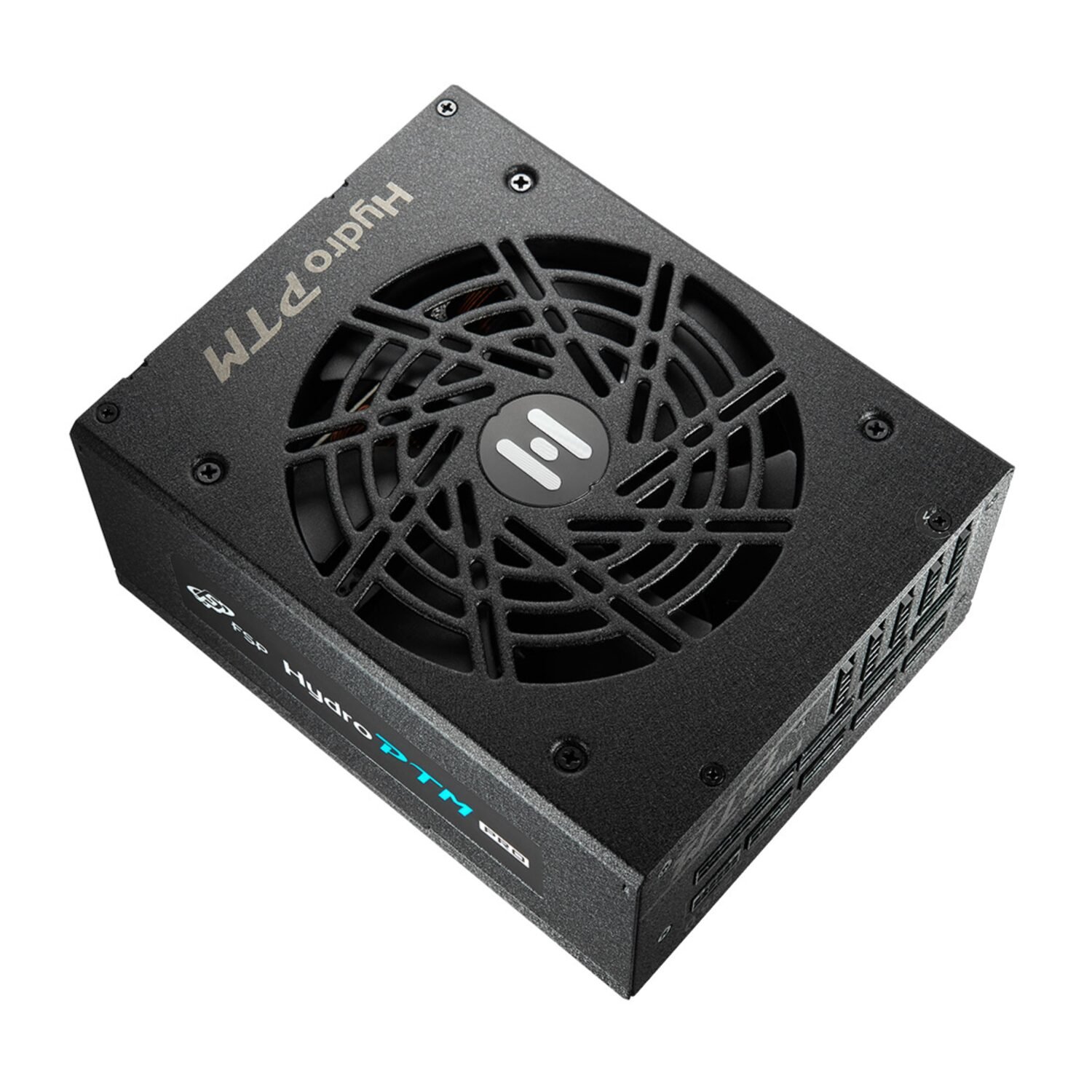

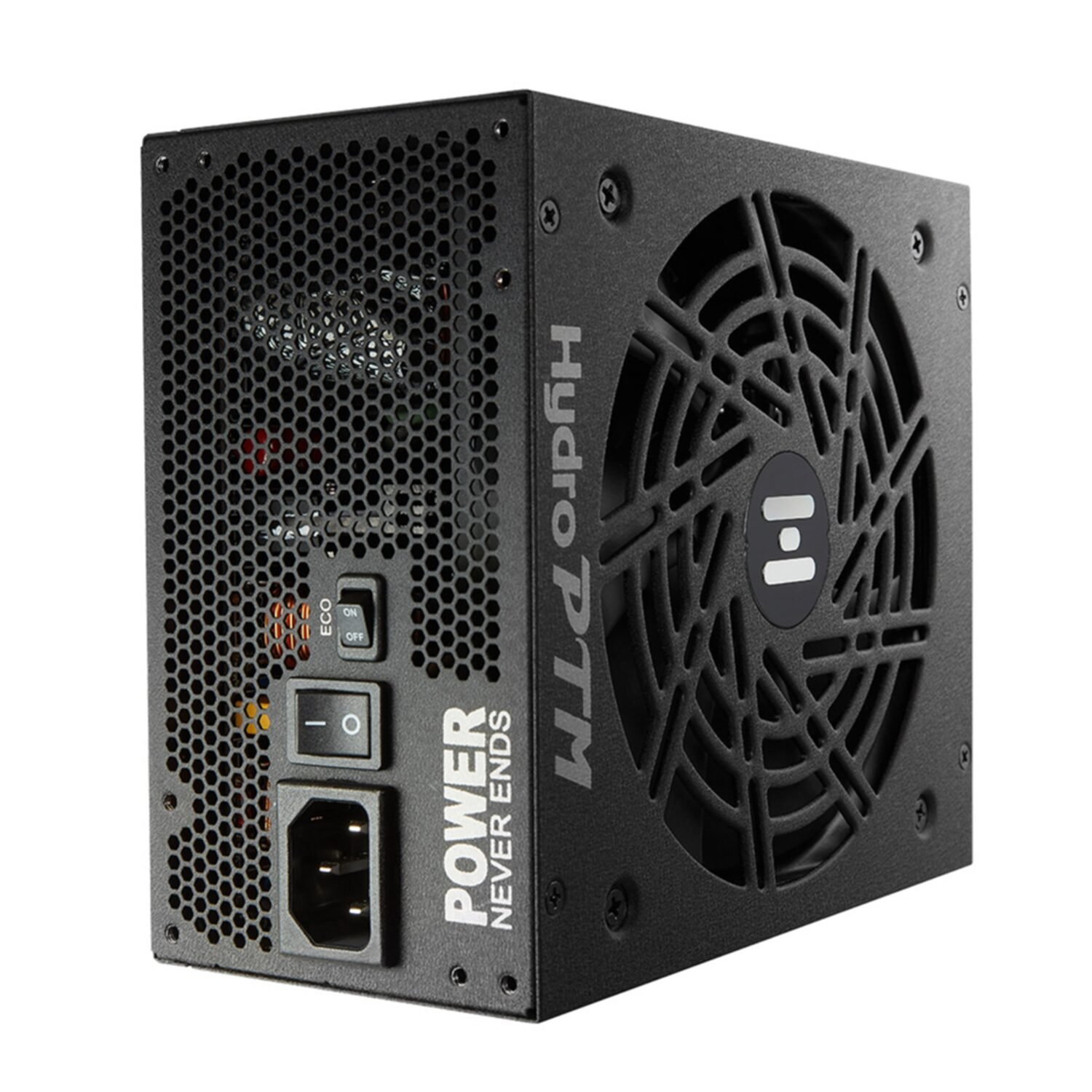

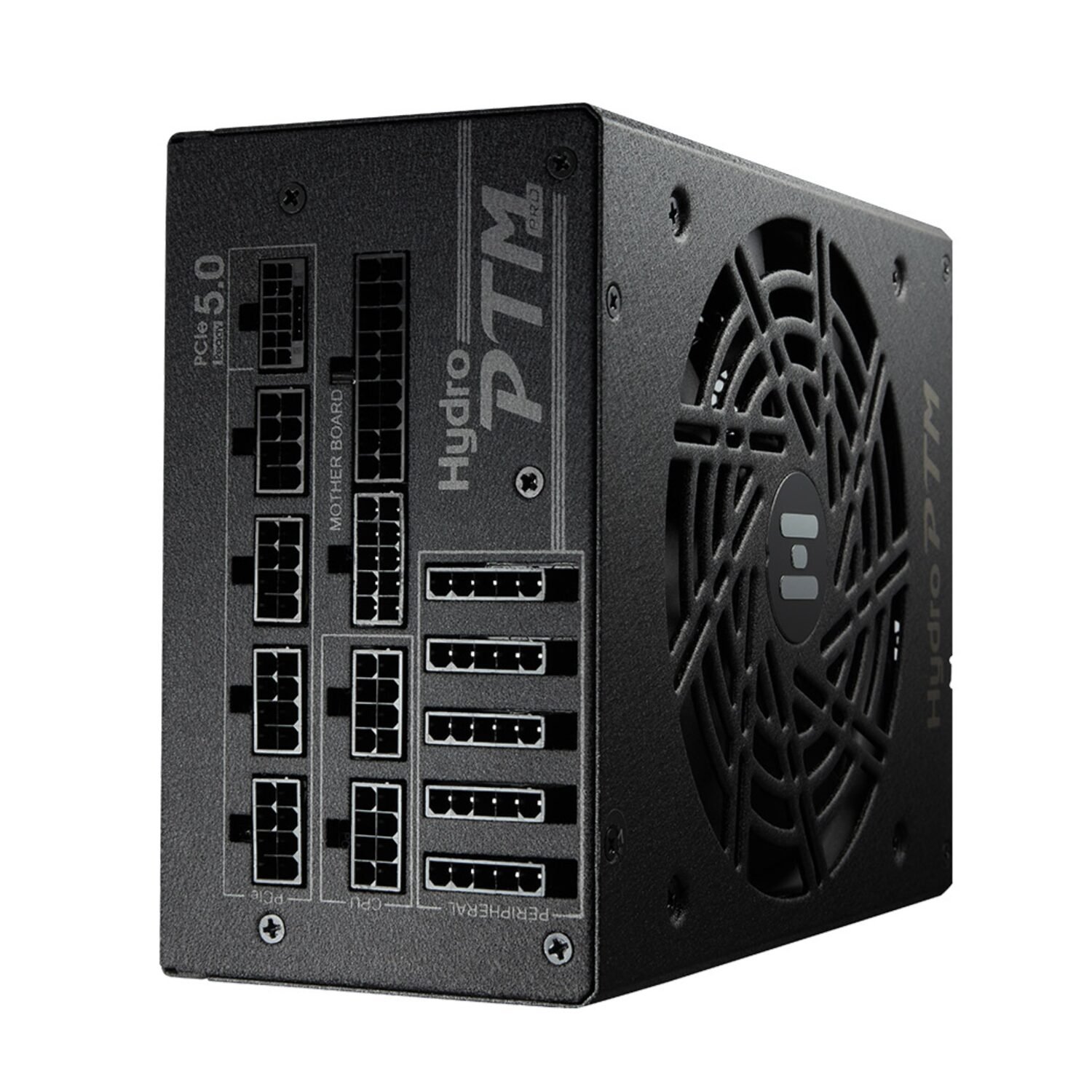

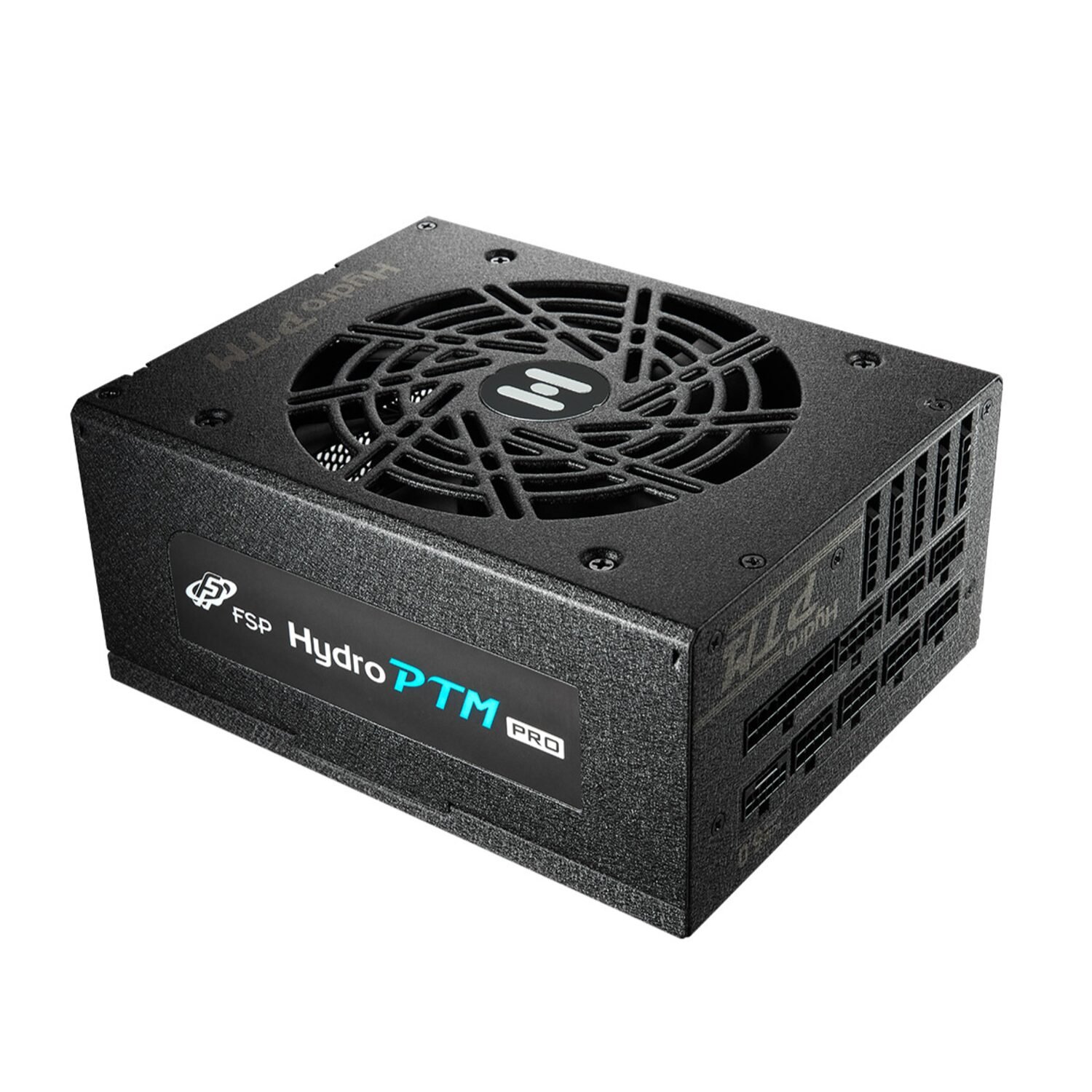

FSP Hydro PTM Pro ATX3.0(PCIe) 1200w Fully Modular Power Supply

1200W fully modular ATX 3.0 power supply | 80 PLUS Platinum efficiency | PCIe Gen 5 (12V-2×6) connector ready | 135 mm cooling fan | 10-year warranty

The FSP Hydro PTM Pro ATX 3.0 1200W is built for demanding high-performance builds that require clean, stable power delivery at scale. Rated at 1200W with 80 PLUS Platinum efficiency, it keeps energy waste low under load — meaning less heat generated and more of your electricity actually reaching your components. Full modularity lets you connect only the cables your build needs, reducing clutter and improving airflow inside the chassis. Native ATX 3.0 compliance and a 12V-2×6 (PCIe Gen 5) connector mean it is ready for the latest graphics cards without adapters or compatibility concerns. A 135 mm fan provides effective thermal management, while the 120-month warranty backs the unit’s long-term reliability.

Features

• 1200W continuous output — sufficient headroom for high-end CPU and GPU combinations
• 80 PLUS Platinum efficiency rating — reduces energy waste and heat output under load
• ATX 3.0 compliant — meets the latest power delivery standards for modern platforms
• 12V-2×6 (PCIe Gen 5) connector included — direct compatibility with current-generation graphics cards
• Fully modular design — attach only the cables you need for a cleaner, better-ventilated build
• 135 mm cooling fan — effective thermal management in a compact footprint
• 10-year warranty — long-term confidence in build quality and reliability

Specifications

• Wattage: 1200W
• Efficiency Rating: 80PLUS Platinum
• Modularity: Full Modular
• Form Factor: ATX
• ATX Standard: ATX 3.0
• 12V-2×6 / PCIe Gen5 Connector: Yes
• Fan Size: 135mm
• Cable Connections:
  • ATX 20+4 x 1
  • 4+4 PIN x 3
  • 12VHPWR x 1
  • PCI-E 6+2 x 6
  • SATA x 14
  • Molex (PERIPHERAL) x 5
  • Floppy x 1
• Colour: Black
• Warranty: 120 months
• Dimensions: 15 x 19 x 8.6 cm

What’s in the Box

• FSP Hydro PTM Pro ATX3.0(PCIe) 1200w Fully Modular Power Supply x1
• Modular Cable Pack x1
