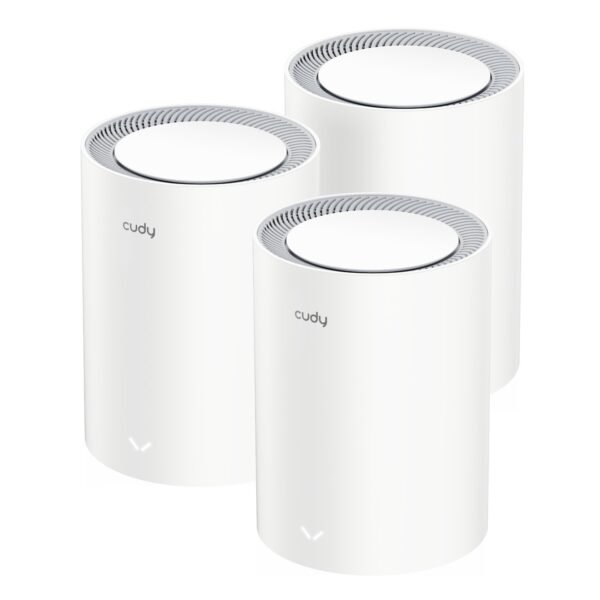

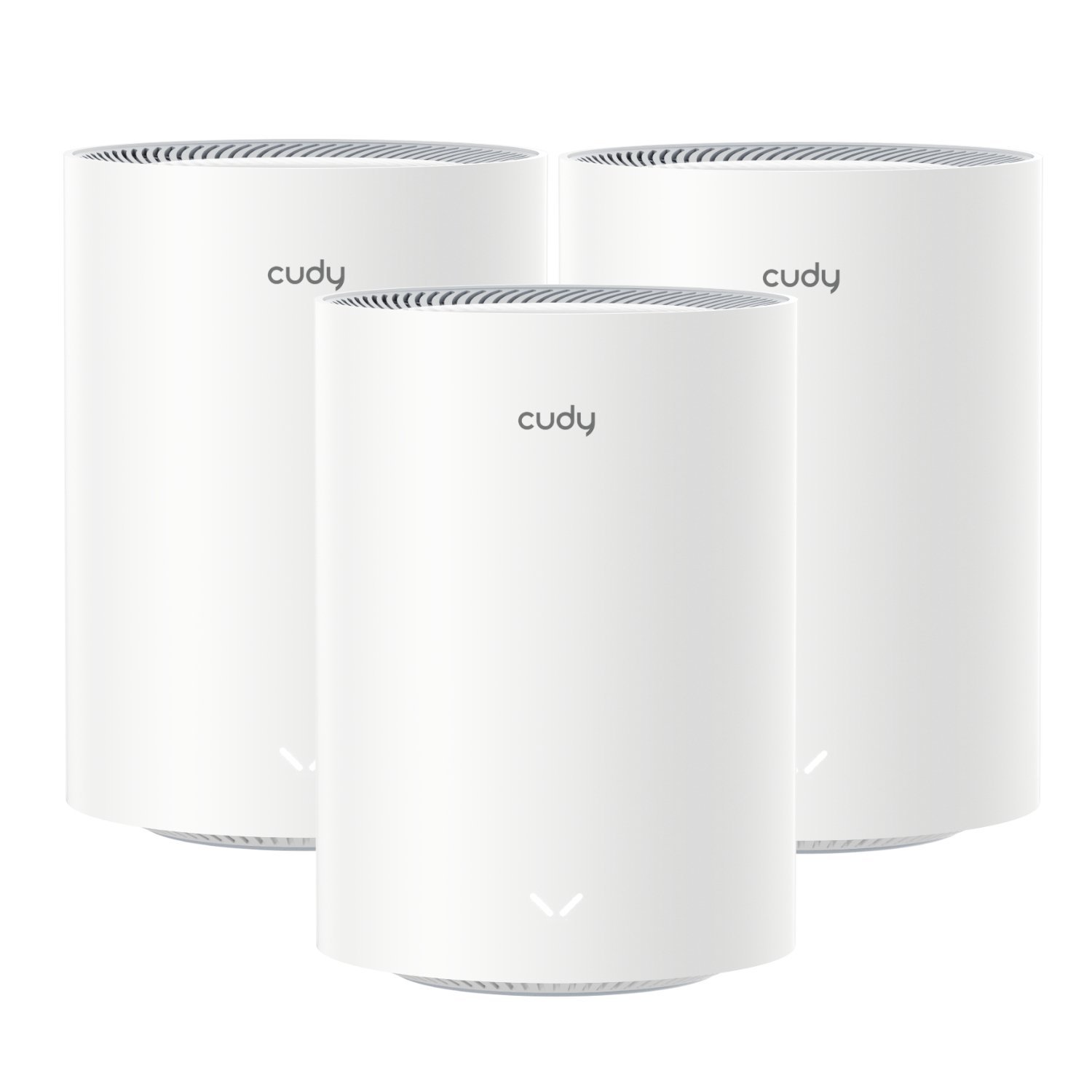

Cudy AX3000 Wi-Fi 6 Mesh Kit 3 Pack – White

The Cudy AX3000 Mesh Wi-Fi 6 System is a powerful networking solution designed to meet the demands of modern homes with high-bandwidth activities like 4K streaming, online gaming, and smart home integration. Featuring five advanced antennas and Wi-Fi 6 technology, it delivers blazing speeds of up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz, ensuring seamless connectivity across your home. With coverage options for spaces up to 6500 sq ft using a three-pack system, it’s the perfect choice for large households or multi-level homes with demanding internet needs.

Advanced parental controls allow you to manage online activity by setting time limits and blocking inappropriate websites, ensuring a safe browsing environment for kids. Security is enhanced with WPA3 encryption, protecting your network from brute-force attacks, while a Guest Network feature keeps your personal devices separated from visitors’ devices for an added layer of privacy. Additionally, the system supports six built-in VPN protocols, offering compatibility with over 50 VPN providers and enabling you to host your own VPN server for secure remote access.

With a 1.3 GHz dual-core CPU and efficient system tools, the Cudy AX3000 ensures reliable performance and easy network management. The intuitive system panel provides clear insights into network status, while the built-in diagnostic tool simplifies troubleshooting. Whether you’re managing over 200 connected devices, running simultaneous streams, or maintaining a secure and private network, the Cudy AX3000 Mesh Wi-Fi 6 System offers a dependable and versatile solution tailored for today’s connected lifestyle.

FEATURES:

• 1.3 GHz Dual-Core CPU
• 4-Stream Dual-Band Wi-Fi 6
• 2402Mbps + 574Mbps Wi-Fi 1
• 200 Connected Devices 2
• Fast Roaming
• Cudy Mesh, VPN Server and Client
• Multi-Band Simultaneous Backhaul
• Cudy App, Cloud Control
• Contains 3 x Mesh Units

SPECIFICATIONS:

• Chipset: MT7981
• CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
• Flash/ROM: 128 MB (1Gbit) NAND
• DDR/RAM: 256 MB (2Gbit) DDR3
• 5.0GHz Wi-Fi Speed: 2402Mbps
• 2.4GHz Wi-Fi Speed: 574Mbps
• 5.0GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• 2.4GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 5× Internal
• 5.0GHz Antenna Gain Max: 5.1dBi
• 2.4GHz Antenna Gain Max: 4.2dBi
• FEM or PA/LNA: 5 GHz: 3× Internal | 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 220 m (722 ft) Indoor Wi-Fi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Wall Performance: Two wooden walls with thickness < 10 cm (4”) | One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)
• Multi-Pack Indoor Coverage:
  • 2 Pack: 400 m² (4300 sq ft)
  • 3 Pack: 600 m² (6500 sq ft)
  • Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

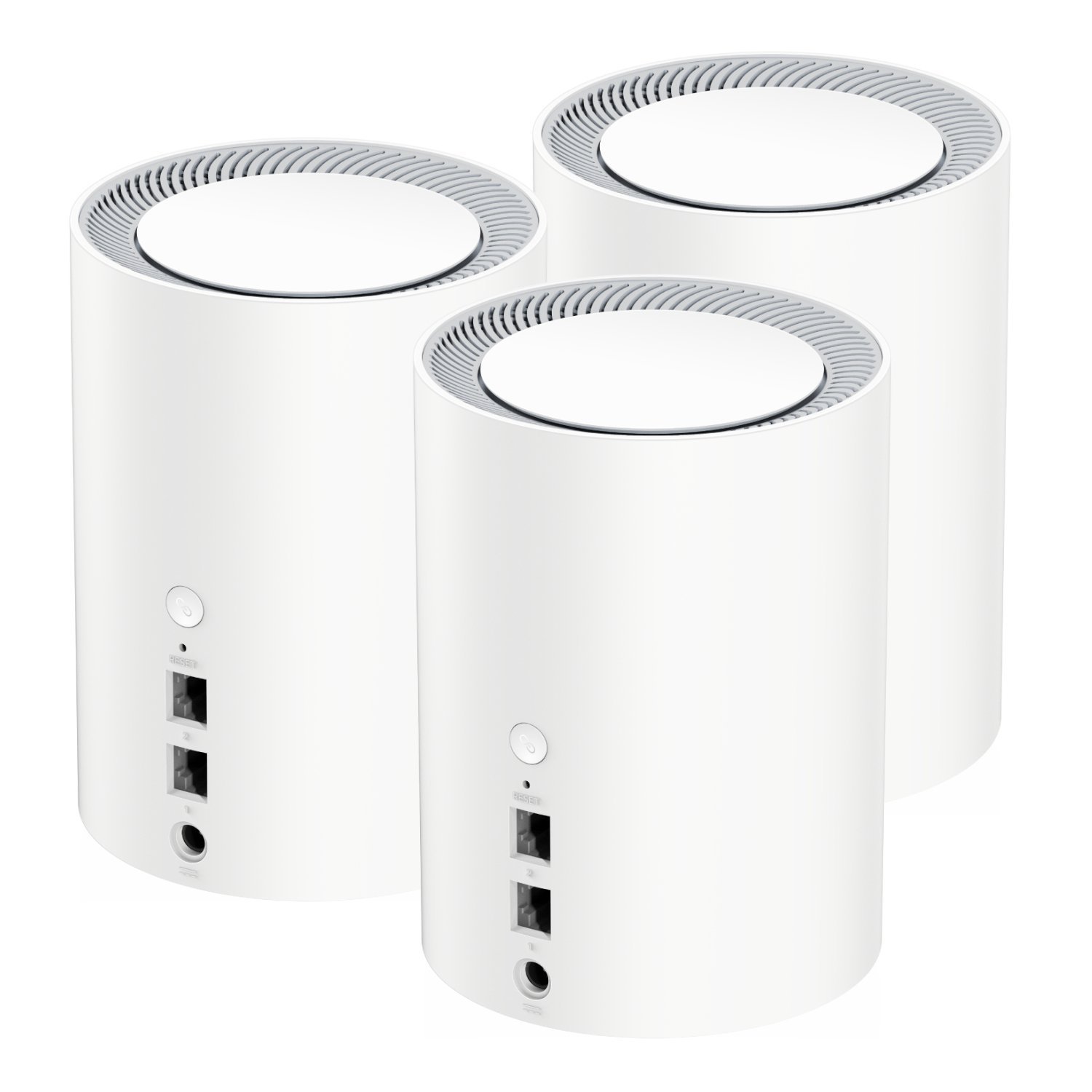

• Interfaces
• 2.5G RJ45 Ports: 1
• Gigabit RJ45 Ports: 1
• Ethernet Notes: The 2.5G port is WAN port, the Gigabit port is LAN port
• LED: System | Speed/Link/ACT of Ethernet Port
• Physical Buttons: WPS Button | Reset Button
• Power Input: DC Jack
• Power Methods: DC
• DC: 12V 1A
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC | Output: 12V 1A DC
• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
• Product Dimensions: 11 x 15.4 cm
• Product Weight: 360g

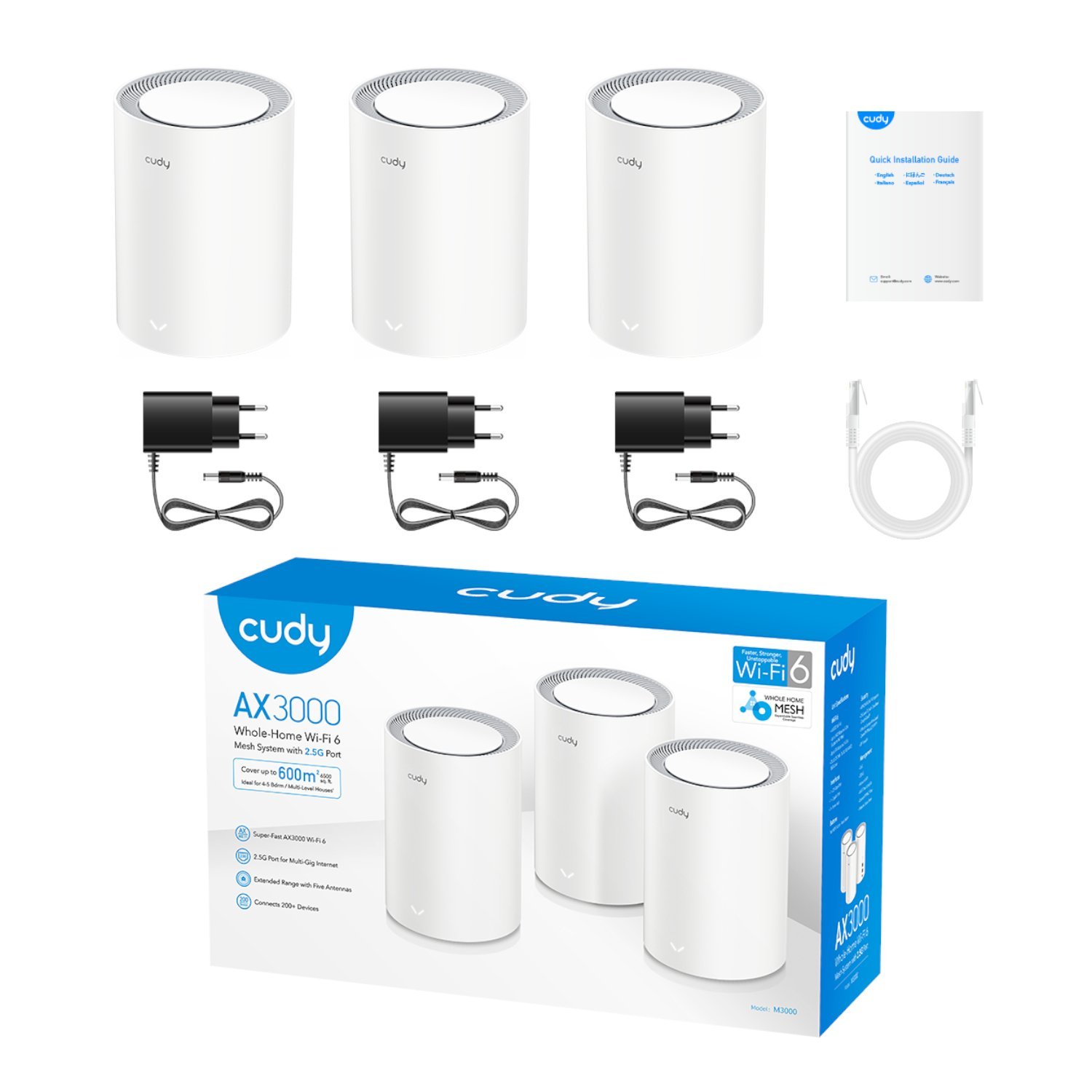

WHAT’S IN THE BOX:

• Cudy AX3000 Mesh Wi-Fi 6 System – White x3
• Power Adapter x3
• Ethernet Cable x1
• Installation Guide x1
