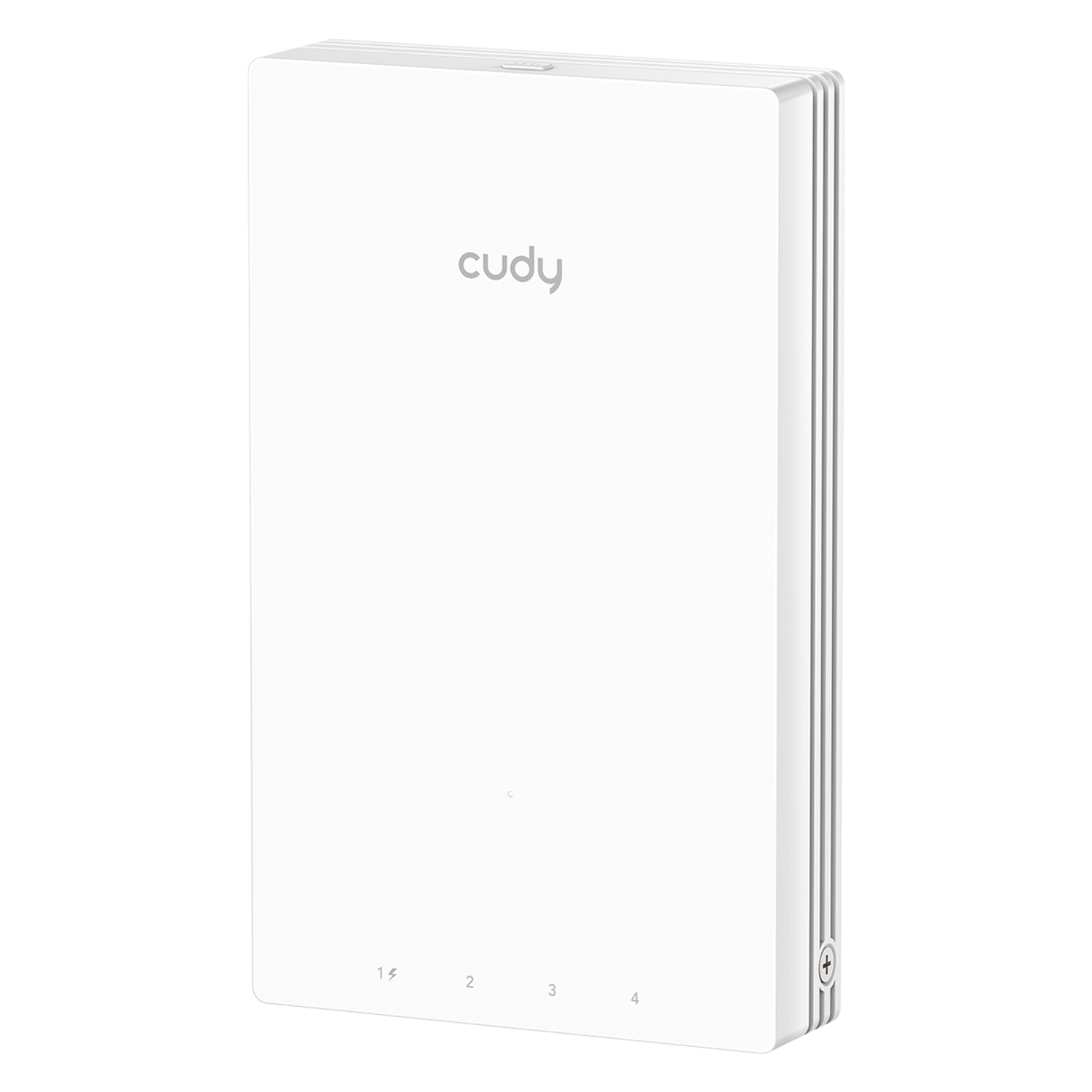

Cudy AC1200 Gigabit Dual-Band Wi-Fi 5 Wall-Plate Access Point

Dedicated room-by-room Wi-Fi coverage | Single-cable PoE installation | Centralised multi-AP management | Discreet wall-plate design that disappears into any interior

Quick Specs

• Enjoy dual-band Wi-Fi 5 speeds of up to 1200 Mbps combined, keeping every room connected without lag
• Cover up to 60 m² per unit and comfortably support up to 40 connected devices in busy spaces
• Simplify installation with 802.3at/af PoE power, running data and power over a single Ethernet cable
• Extend power to a VoIP phone or other PSE device downstream with built-in PoE passthrough
• Manage every access point from one dashboard with the Cudy App or the Cudy AP Controller

Wi-Fi Built Into the Wall, Not Bolted Onto It

The Cudy AP1300 Wall is designed for the spaces where a single router just can’t reach every corner – hotel rooms, dormitories, apartments and open-plan offices. Rather than mounting another visible box on the desk or ceiling, this access point fits into a standard electrical wall box, sitting flush against the wall like a light switch or power outlet. For South African hospitality operators, property managers and office IT teams who need dependable, dedicated Wi-Fi in every room without unsightly cabling or clutter, it’s a practical, professional solution.

Dedicated Coverage Without the Dead Zones

Tired of guests or staff complaining about patchy Wi-Fi in certain rooms? The AP1300 Wall delivers 4-stream dual-band Wi-Fi 5, combining 867 Mbps on the 5 GHz band with 300 Mbps on 2.4 GHz for a combined 1200 Mbps of throughput. Each unit is built to cover up to 60 m² (650 ft²) and comfortably handle up to 40 connected devices, making it well suited to hotel rooms, meeting rooms or apartment units. With support for up to 8 SSIDs across both bands and VLAN tagging, you can separate guest, staff and IoT traffic on the same hardware while keeping every network secured with WPA/WPA2/WPA3.

One Cable Does It All

Deployment gets significantly simpler when you only need to run a single Ethernet cable. The AP1300 Wall is powered via 802.3at/af PoE or passive PoE straight through its ETH0 port, eliminating the need for a separate power adapter at every install point. A second port offers PoE passthrough, so you can power a downstream VoIP phone, IP camera or other PSE-enabled device from the same access point – ideal for hotel rooms that need both Wi-Fi and a wired handset. In total, five Gigabit Ethernet ports are on hand for wired laptops, IPTV boxes, printers and other devices that benefit from a stable, direct connection.

Installed in Minutes, Managed From Anywhere

The wall-mount bracket is compatible with 86 mm, standard EU and standard US junction boxes, so fitting the AP1300 Wall is a quick retrofit rather than a rewiring job. Once installed, it can be managed individually through the Cudy App, or scaled up with the Cudy AP Controller (model C200P), which handles batch configuration and firmware updates for up to 200 access points from one interface – a real advantage for hotels and offices rolling out coverage room by room. Mesh compatibility means it can also join a Cudy Mesh network over wireless, wired or multi-band backhaul, while watchdog monitoring and scheduled reboots keep the network running reliably with minimal hands-on maintenance.

Features

• 4-stream dual-band Wi-Fi 5 delivering 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz
• Five Gigabit Ethernet ports, including one PoE-in port and one PoE passthrough output
• Powered via 802.3at/af PoE or passive PoE, removing the need for a separate power adapter
• Supports up to 8 SSIDs (4 per band) with VLAN support for separating guest, staff and device networks
• WPA/WPA2/WPA3 security across all wireless networks
• Cudy Mesh compatible, with wireless, wired or multi-band backhaul options
• Centralised management of up to 200 access points via the Cudy AP Controller (C200P)
• Watchdog monitoring and scheduled reboot for consistent, low-maintenance uptime

Specifications

• Colour: White
• Device Type: Access Point
• Bands: Dual
• Ethernet Ports: 5
• PoE Powered: true
• Mesh Compatible: true
• Product Dimensions: 143×86×27.6 mm
• Product Weight: 261.2 g
• Packaging Dimensions: 152×39.5×90 mm
• Packaging Weight: 362.9 g

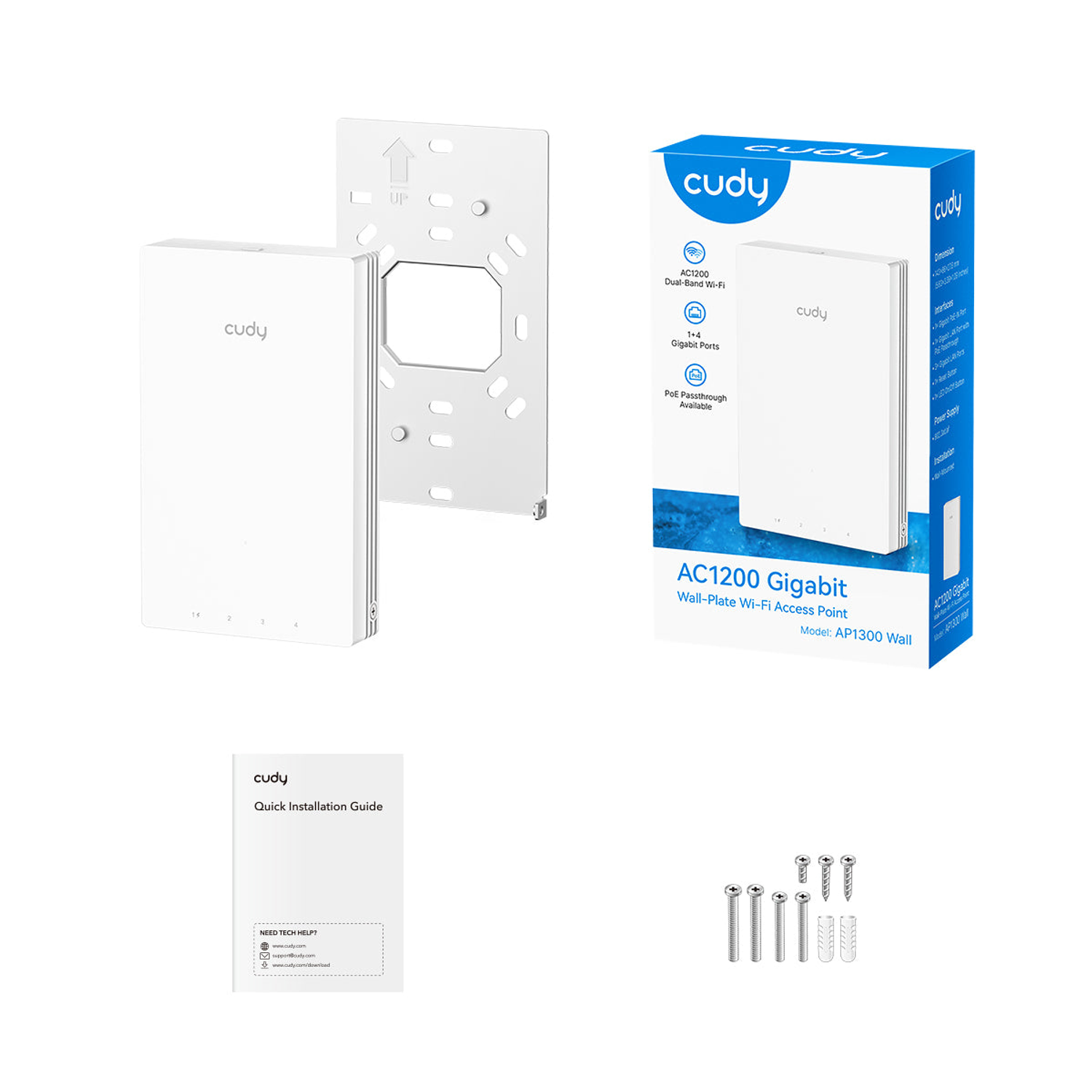

What’s in the Box

• 1 x Cudy AP1300 Wall Access Point – White
• 1 x Installation Guide
• 1 x Mounting Kit

Why Cudy

Cudy is committed to making enterprise-grade networking simple to deploy and manage, from mesh routers to business access points. The AP1300 Wall brings that same philosophy to room-by-room Wi-Fi, giving South African hotels, offices and residential complexes a discreet, reliable way to extend coverage without complex installation.
