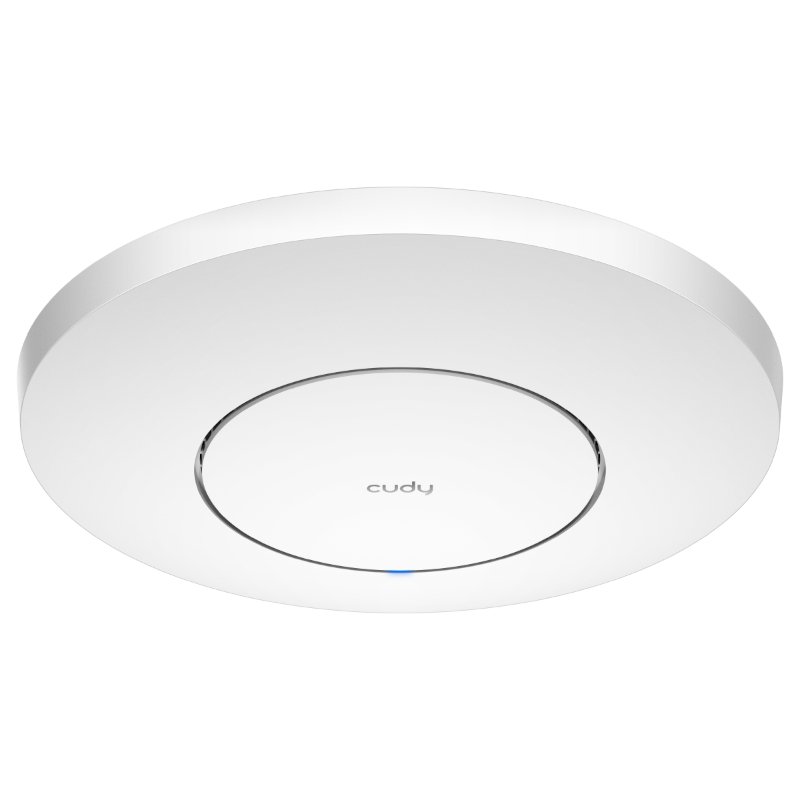

Cudy AC1200 Gigabit Dual Band Ceiling Access Point

The Cudy AC1200 Dual-Band Access Point is a great way to extend your existing LAN network into a wireless one. It features a high-speed dual-band network that allows you to access 2.4GHz or 5GHz frequency bands. It can reach transfer speeds of up to 867Mbps on a 5GHz frequency. It also supports Advanced Business AP Features, as well as support for PoE(802.af) for more convenience. Its simple mounting design makes it easy to attach to a wall or ceiling.

FEATURES:

• Up to 867Mbps Wireless Speed
• Dual-Band Frequency
• Dual Core Processor
• Multi-Mode: AP/Router/RE/WISP
• PoE or DC Power Supply
• Versatile Mounting

SPECIFICATIONS:

• CPU: 880 MHz Dual-Core Processor
• Flash: 16 MB (128 Mbit)
• DDR: 128 MB (1 Gbit)
• Interface: 1× Gigabit Ethernet Port (PoE In), 1× Reset Button, 1× DC Jack
• Power Supply: 802.3af/at PoE, 24-57 V Passive PoE (+4,5pins; -7,8pins), 12 V ⎓ 1A DC
• Power Consumption: Idle: 4 W, PoE Max: 11 W, DC Max: 7.5 W
• Antenna Type: 4× Internal Omni-directional Antennas
• Mounting: Ceiling/Wall Mounting (Kit included)
• Wireless Standards: Wi-Fi 5 (802.11ac/n/g/b/a)
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 5 GHz: Up to 867 Mbps, 2.4 GHz: Up to 300 Mbps
• Channel Width: 20/40/80 MHz
• Wireless Function:
• Multiple SSID
• Captive Portal
• Seamless Roaming Mesh△
• Self-Organizing Mesh△
• Band Steering
• Auto Channel Optimization
• Enable/Disable Wireless Radio
• Transmit Power Control
• QoS (WMM)
• MU-MIMO
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Encryption: WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK
• Operating Modes: Wireless Access Point Mode, Wireless Router Mode, Wireless Extender Mode, WISP Mode
• Operating Temperature: 0~40 °C (32~104 °F)
• Storage Temperature: -40~70 °C (-40~158 °F)
• Dimensions: 23 ×23 × 5.7 cm

WHAT’S IN THE BOX:

• Cudy AC1200 Dual-Band Access Point – White x1
