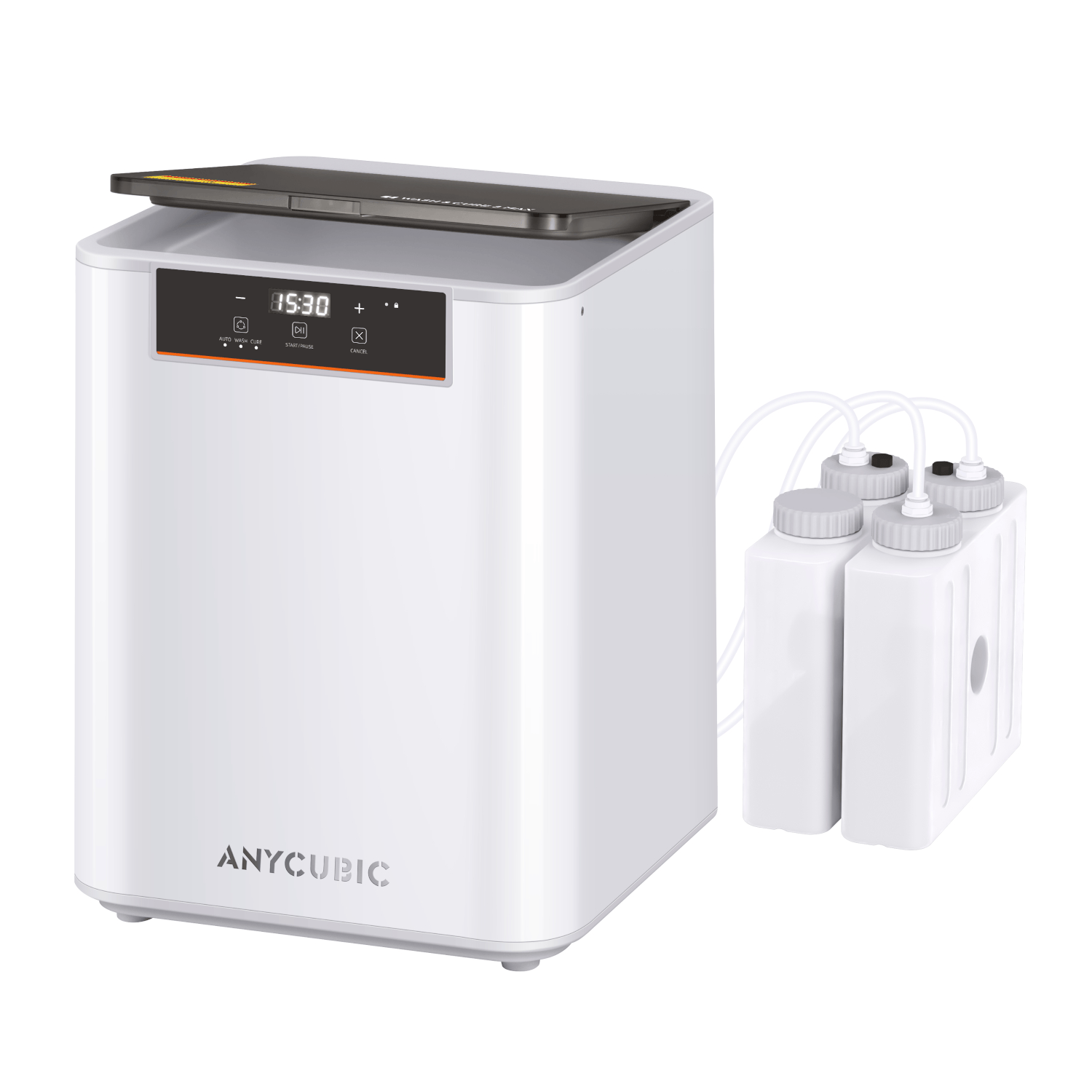

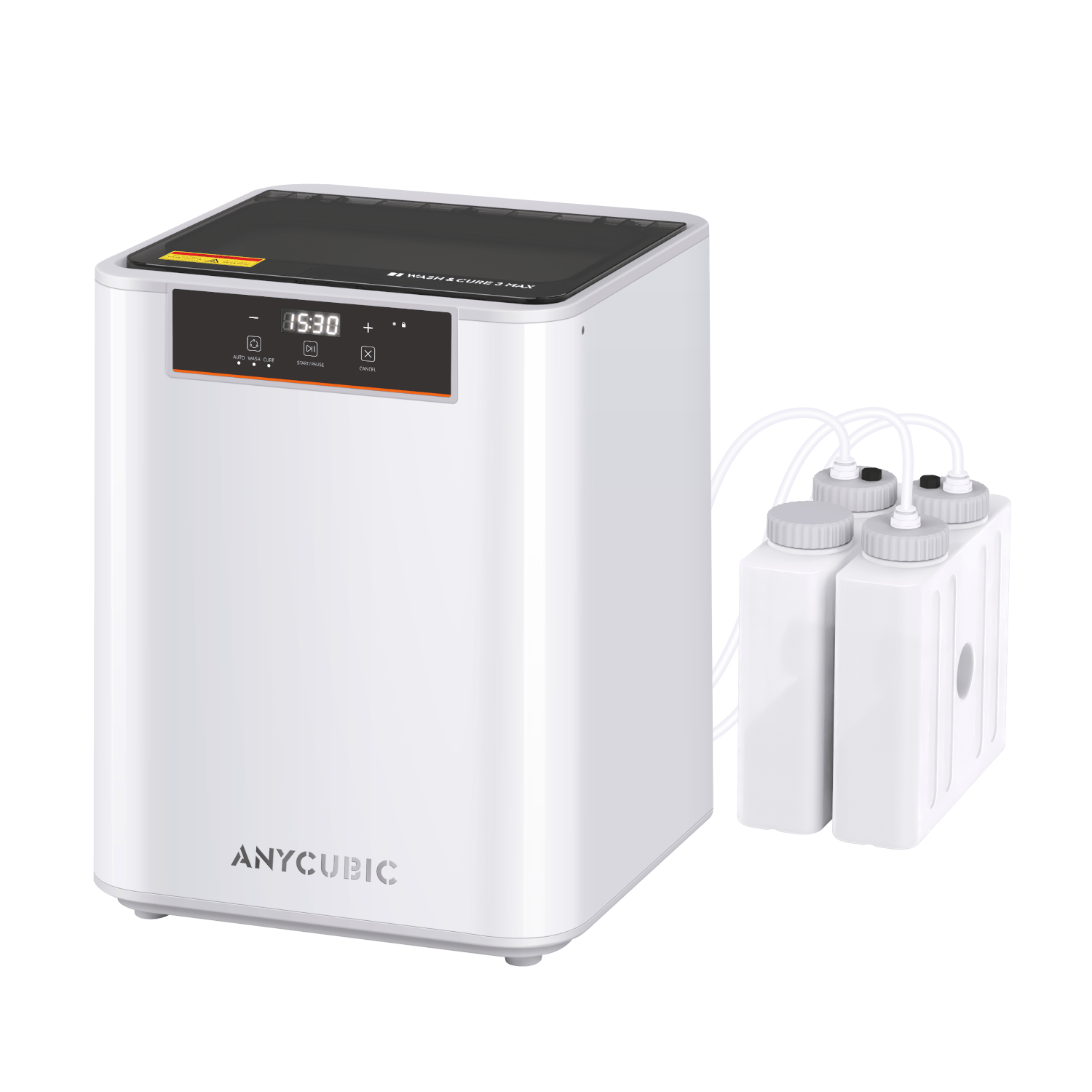

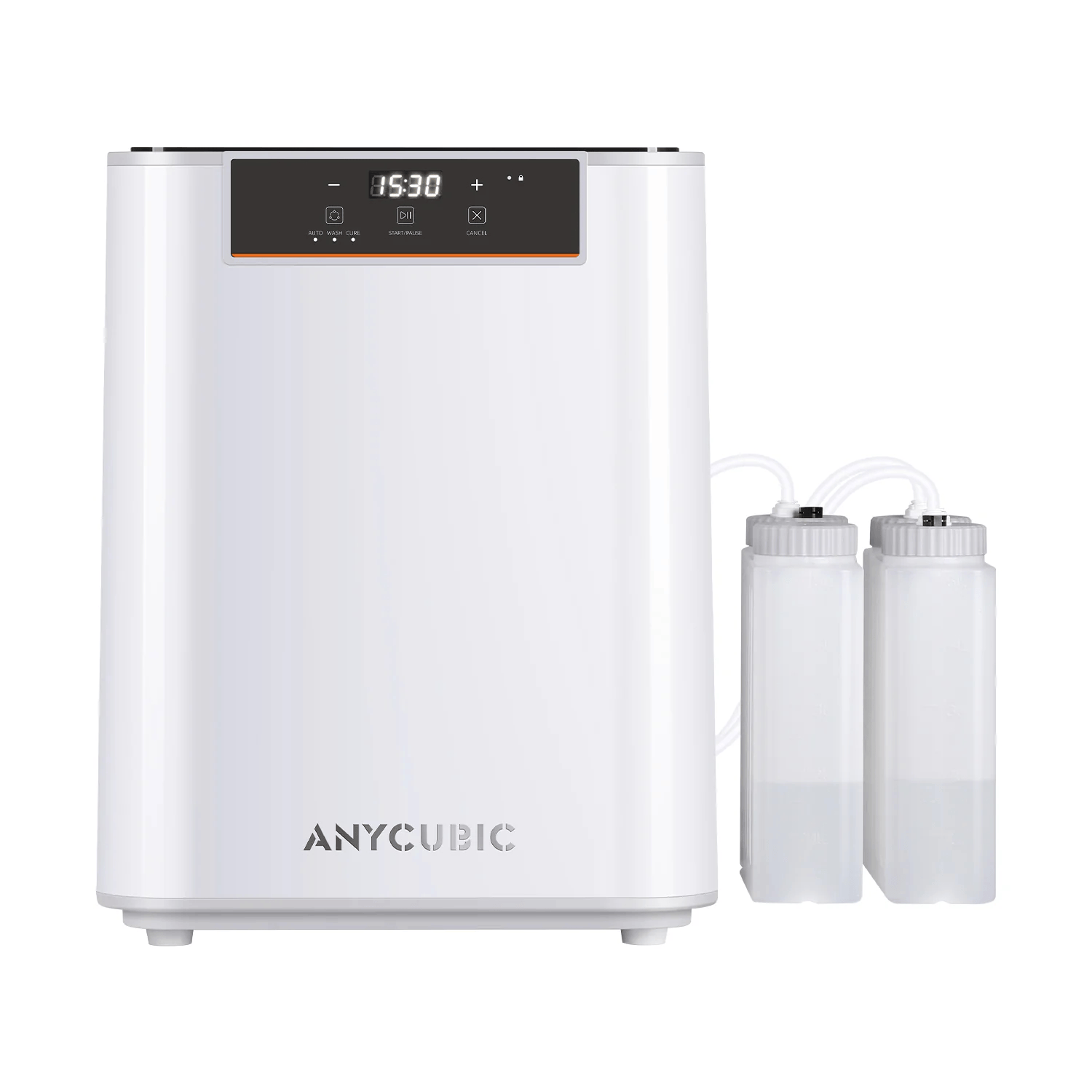

Anycubic Wash and Cure 3 Max

Ultra-large 15.1L wash capacity | One-click automated washing and curing | Compatible with most mainstream LCD printers up to 13.6 inches | Customisable wash and cure modes | Intelligent error monitoring

The Anycubic Wash & Cure 3 Max is built for serious resin 3D printing enthusiasts, studios, and professionals who need a reliable, high-capacity post-processing station. With a maximum wash capacity of 305 × 165 × 300 mm and a cleaning container capacity of 20L, it handles large and batch prints with ease — making it compatible with the Photon M3 Max, Photon Mono M7 Max, and most mainstream LCD printers with a build volume of 13.6 inches or smaller. One-click automation drives the full wash and cure cycle, eliminating messy manual handling, while three flexible modes — Auto (13–42.5 mins), Wash (10–39.5 mins), and Cure (0.5–30 mins) — let you dial in the process to suit each print. A 360° rotating curing platform powered by 20 × 405nm LEDs plus a gooseneck light delivers a maximum curing power density of 25,000 μW/cm² at 18 cm irradiation distance for a thorough, even cure. Full-process intelligent monitoring alerts you to open covers, low voltage, blockages, and liquid inflow issues before they become problems. The result is a cleaner, faster, and more controlled post-processing workflow from first wash to finished print.

Features

• Ultra-large 15.1L maximum curing volume accommodates large prints and batch runs from most LCD printers up to 13.6 inches
• Maximum wash dimensions of 305 × 165 × 300 mm — compatible with Photon M3 Max, Photon Mono M7 Max, and most mainstream LCD printers
• One-click fully automated washing and curing cycle keeps hands clean and the workflow simple
• Three customisable modes: Auto (13–42.5 mins), Wash (10–39.5 mins), and Cure (0.5–30 mins) for flexible post-processing
• 360° spray cleaning combined with bottom-section immersion for thorough, IPA-efficient cleaning
• Curing platform with 20 × 405nm LEDs plus gooseneck light, reaching up to 25,000 μW/cm² power density at 18 cm
• Full-process intelligent monitoring with error alerts for open cover, no liquid inflow, outlet blockage, and low voltage

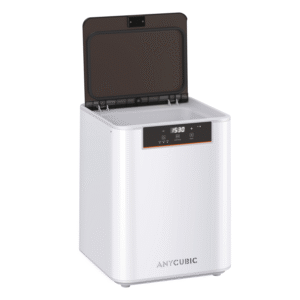

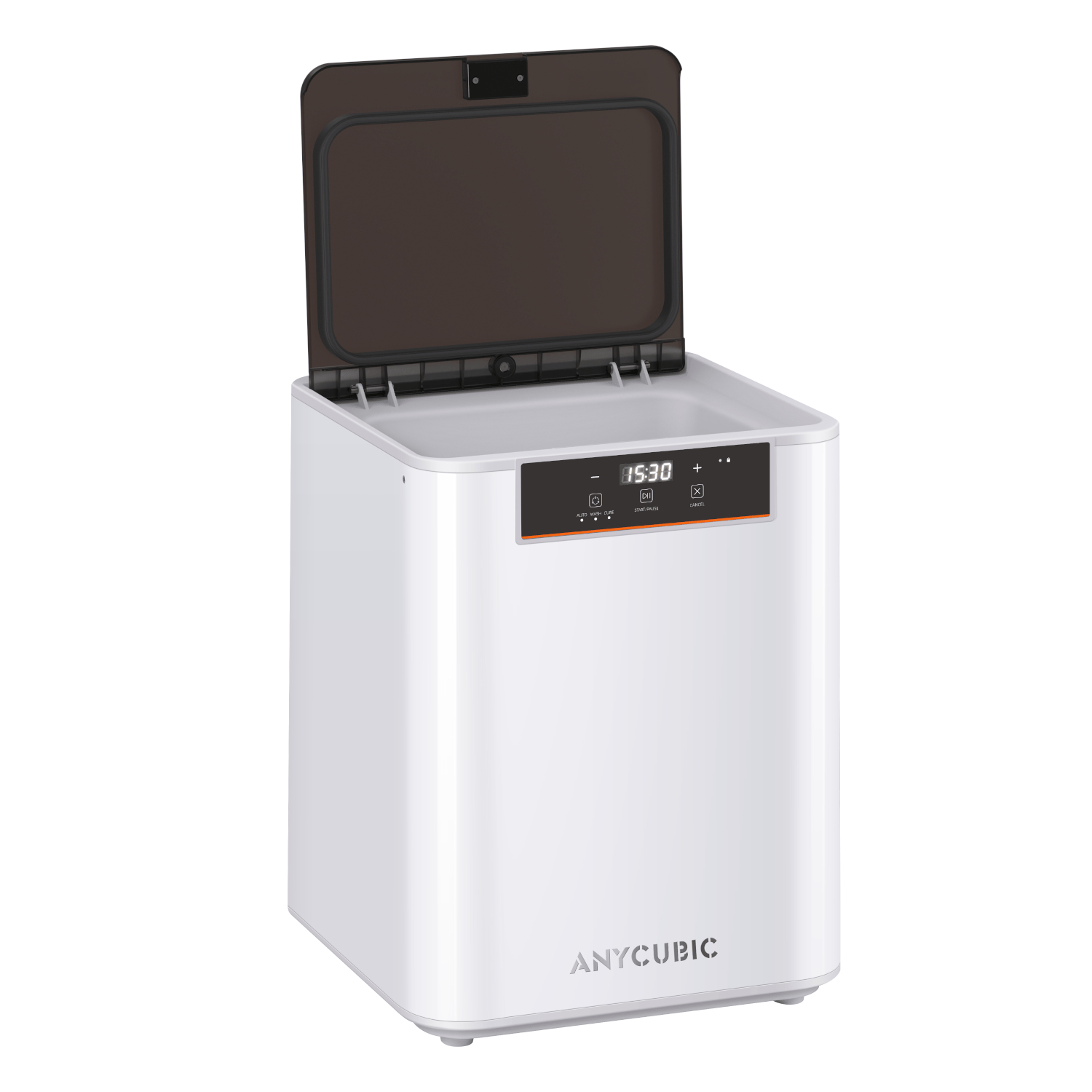

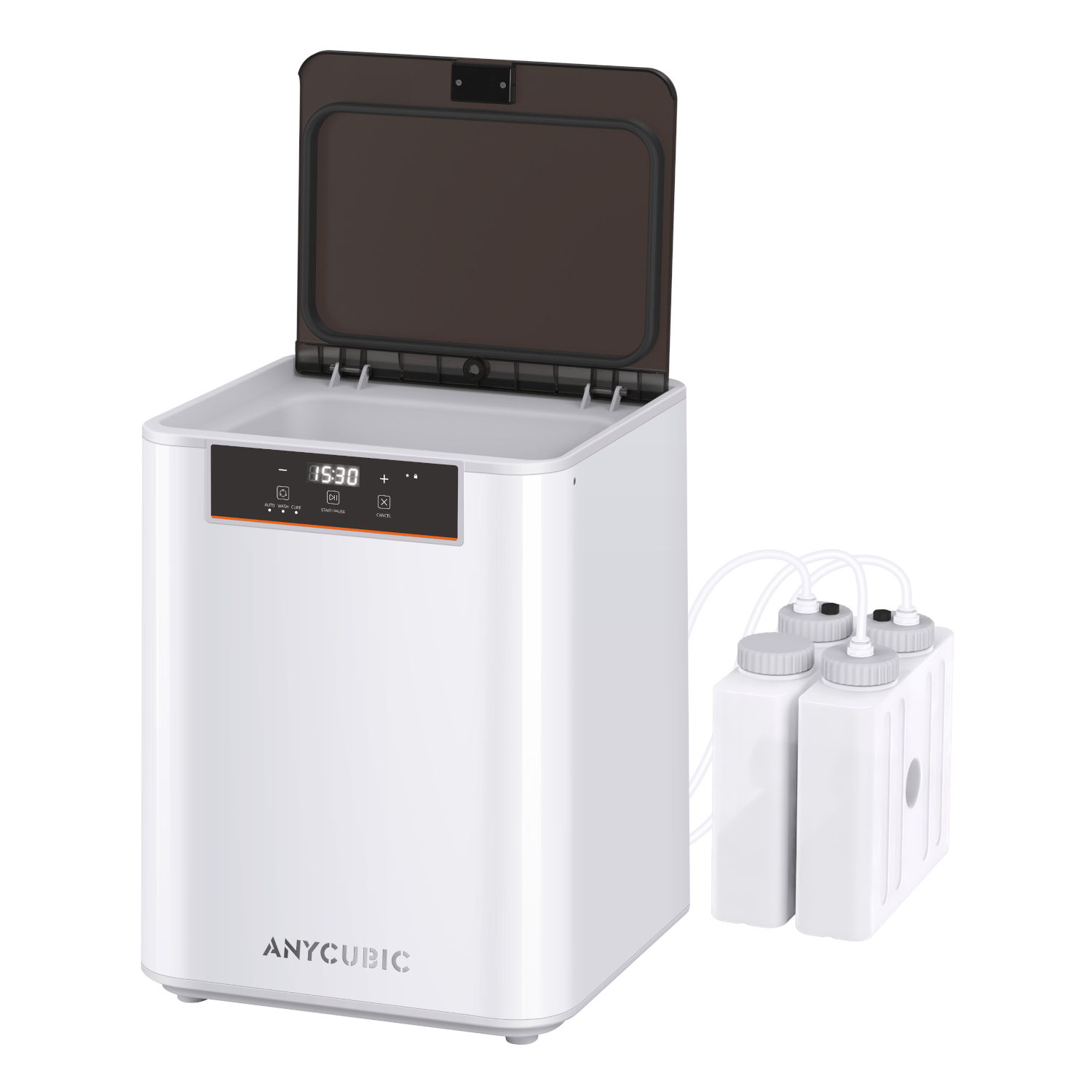

• Transparent flip-open lid and minimalistic touch-button control panel for easy access and operation

Specifications

• Maximum Curing Volume: 15.1L
• Maximum Cleaning Volume: 305*165*300mm
• Cleaning Method: Alcohol Soaking + Spray Rinse
• Time Setting Range: 13-42.5 Mins (Auto mode), 10-39.5 Mins (Wash mode), 0.5-30 Mins (Cure mode)
• Cleaning Container Capacity: 20L
• UV Light Configuration: 20pcs*405nm LEDs + Gooseneck Light
• Power Supply: 120W
• Control Interface: Touch Buttons
• Compatible Printer Models:
  • Photon M3 Max
  • Photon Mono M7 Max
  • Most mainstream LCD printers with build volume 13.6 inches or smaller
• Product Dimensions: 43.4 × 43.4 × 55.6 cm
• Product Weight: 13500g

What’s in the Box

• Anycubic Wash & Cure 3 Max Tray x1
• Detergent Drum x1
• Waste Liquid Drum x1
• Clean Liquid Drum x1
• Water Tubes x4
• Wrench Set x1
• Power Adapter and Power Cord x1
• User Manual x1
